Complete Solution of Sheet Metal Industries/ Press Shop
PNEUMATIC FEEDER FOR POWER PRESS/ SHEET STRAIGHTENER/ CUT TO LENGTH LINES.ETC.

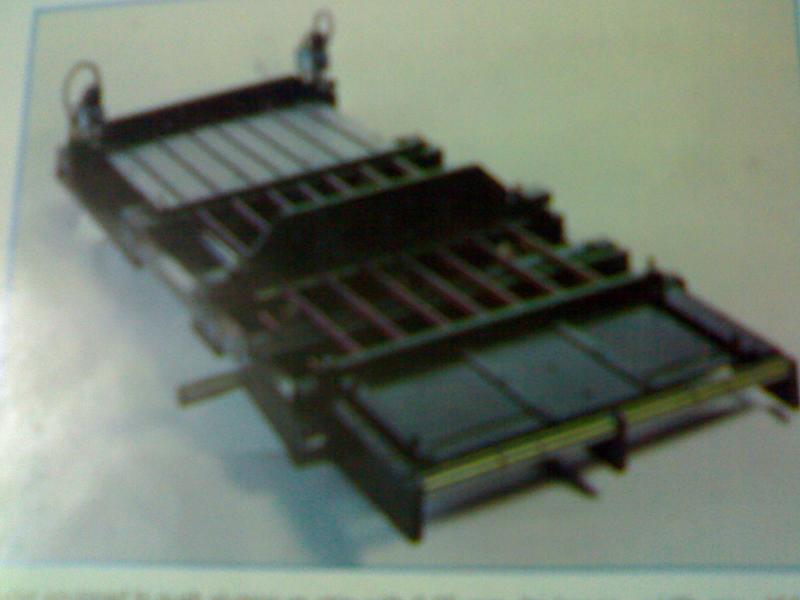

PNEUMATIC FEEDEROur hertz high precision pneumatic feeder offers the most simplest feeding in the field of pneumatics. These are simple in use and also are maintenance free. Following are some of the features of our products :
- Highly accuracy in tune of 20 microns
- Easy installation one power press to another
- Fit for any kind of working atmosphere
- Low air consumption and minimum sound operation
- Increase both productivity & quality
We offer multi clyinders pneumatic feeders for up to 1000 mm sheet width, 1000 mm stroke length & 16 mm sheet thickness.which are fabricated by us under the supervision of expert engineers. Stringently quality checked, these pneumatic feeders are sure to serve the end users for a long period of time offering trouble free performance

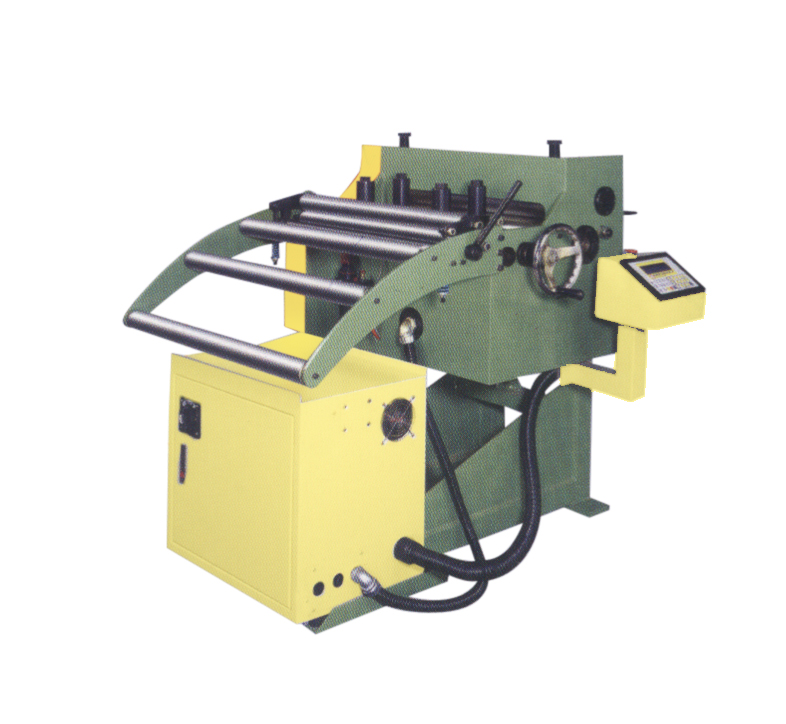

NC SERVO ROLL FEEDERWe are specialized in manufacturing a range of NC Servo Feeders, that are suitable for coil of different materials. Designed using advanced technology, these feeders are easy in operation, safe and stable. Available in different specifications, these can also be customized as per the requirements of clients.- GE Fanuc servo motor feeder, precise feed measurements with extremely small error.
- Feeder roller surface specially treated and hard chrome plated to minimum hardness HRC60° for high wear resistance.
- Human machine interface control for convenient operations.
- Pneumatic release for highly accuracy.
- Custom designs models are also available upon request.
SPECIFICATIONS:- STRIP WIDTH - 100/200/300/400/600/800/1000/1300
- STRIP THICKNESS - 0.20- 6.0 MM

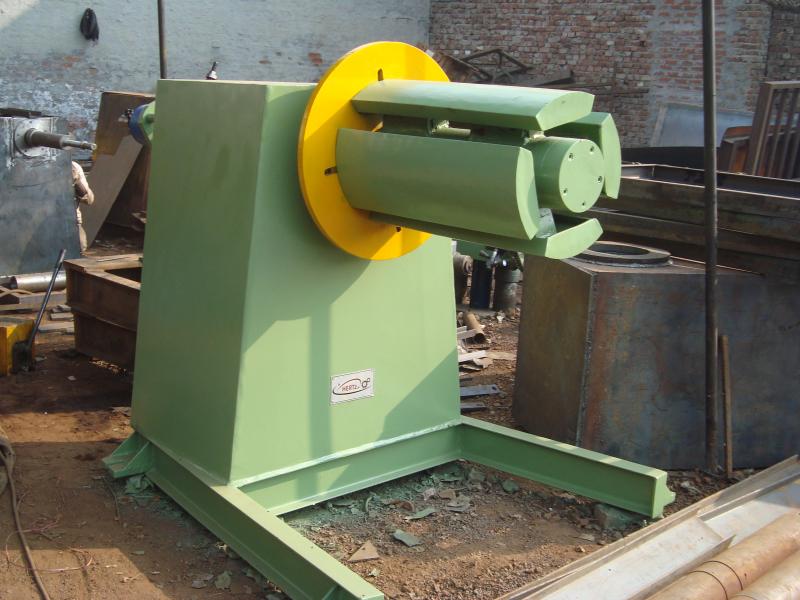

DE-COILER/ UN-COILER
We design and manufacture motorized decoiler that are coil handling units and fabricated from high quality raw materials.these model are varies up to 700 mm sheet width, 3000 kgs. coil weight & 4.0mm sheet thickness with loop control.Features- Models are available up to 20 ton capacity 1500 mm width
- Driven by A/C gear motor with loop control
- Main parts are of alloy steels
- Jaws expansion manually operated
- Mechanical brake provides smooth working
- Jaws hydraulic operated optional
- Coil car carrier optional
- Snouber optional

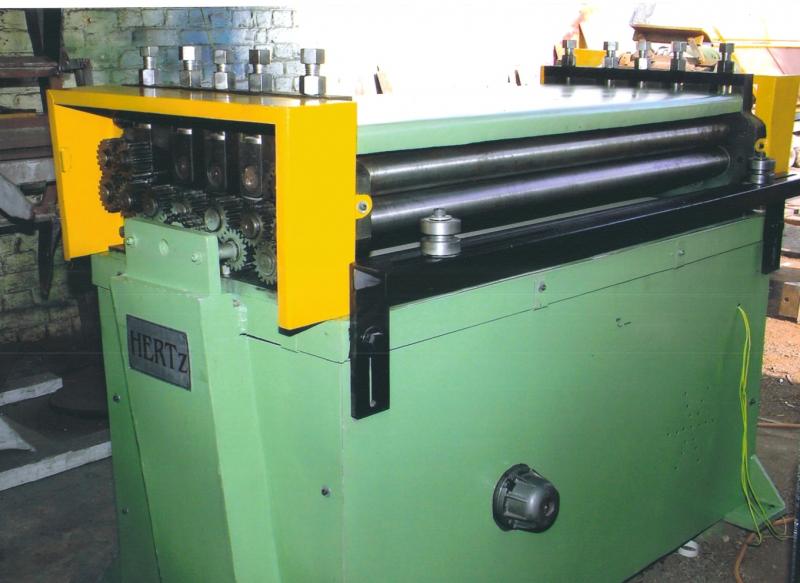

SHEET STRAIGHTENERDepending upon the material specifications and other requirement of our clients, we offer strip straightener. Through our technical department, we advice our clients on the right purchasing. Along with the versatile range of top quality precision strip straightener, pull through models are also available. Following are some of features of our products :these model are varies up to 1300 mm sheet width & 4.0mm sheet thickness.- Durable
- Simple in use
- Maintenance free
- User-friendly
We offer our clients a range of Strip Straighteners, that are constructed using graded components, sourced from reliable vendors. Designed with precision, these are dimensionally accurate, high in strength and durable. This type of straightener use up to maximum of 2.0 mm sheet thickness and 400 mm sheet width for CRC, aluminum, brass sheets etc.

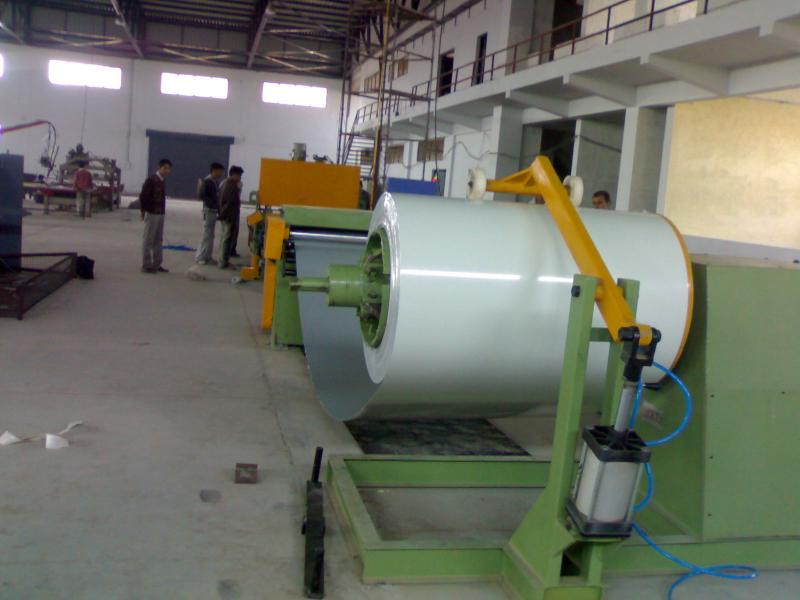

CUT TO LENGTH MACHINEThe cut to length lines automatically feeds & cuts to even or random as required lengths of sheets by power shear/ fly shear Using high precise straighteners. the machine has a single or double straightener as per requirements. These are technically accurate machines that have been assessed on performance & consistency in output before releasing to market.
Features :- Cut to length lines varied from 400 mm to 2500 mm width
- Coil thickness varies from 0.20 mm to 16 mm ( CRC, HR, CRNGO & S.S. Material)
- Weight of Coil varies from 3.0 ton to 30 tons
- Operation : Hydraulic Power and Pneumatic Clutch
- Construct : Made up of EN-31 material roller, hardened gears etc.
- Control Line : Electrical Stopper & Servo Motor based.
- Control Line Encoder : PLC Based
SPECIFICATIONS & FEATURES- We are manufacturing CTL Lines upto 400 - 3000 mm coil Width.
- Thickness of the Coil varies 0.20 - 20 mm of CRC, HR, Alluminioum & SS Material.
- Coil Weight varies 3.0 MT to 30 MT.
- Shearing machines are available both type. (Pneumatic clutch operated & Hydraulically operated).
- Straightener / Leveler machine rollers are made of Alloy Steels.
- Driven by gears or auxiliary gear box.
- Line speed upto 40 Meters per Minute.
- Mechanical stopper control line.
- Variable Speed of line - optional.
- Electrical Stopper Control line - Optional.
- Encoder with PLC Control base line - Optional.
- NC Servo Motor high speed control line - Optional.
- Back tray, motorised Conveyor or hydraulic Stacker - Optional.
MECHANICAL GRIPPER FEEDERWe offer mechanical gripper feeder for perfect solution of feeding strips on medium / high power possess. These have accurate and easy pitch adjustment where its accuracy in tune 0.20 mm is obtainable with piloting. Following are some of the features of our products :
- All rotating parts are fitted with anti friction bearings to provide long life & reduce maintenance
- The gripper are made out of carbide material long life
- High speed up to 650 strokes / min
- Roller cam for pilot release setting for precision adjustment of the fixed gripper
- Silent & Trouble free operation
- Micrometer pitch setting arrangement
- Mechanically synchronization with the press avoiding feeding mismatch at high speed
- Drive from the press crankshaft to the gripper is fitted with an overload safety coupling
- Hardened gears providing in the right angle gear box for long life
COMPONENT STRAIGHTENER
These are precision-engineered component straightener that are very effective for straightening flat components and cut sheets. As most of the flat component become deformed after press work, due to shearing by punches & dies, the components pass through a straightening machine to regain the desired flatness. So, our range of component straighteners designed & constructed with accuracy & also flexibility to suit to deviating needs of industrial-users. Component Straightener's Specifications :
- Component Width : 100- 500 mm
- Thickness : Min – 0.5 mm & Max – 10 mm
- Suitable for : CRC & HR Metals
- No of Straightening Rollers : 19- 25 Nos. (Depending of Model & Application)
- Speed : 2.5 Meters / Minute
- Gear Box : Worm reduction gear box
- Material of Rolls Construct EN-31
- Hardness of Rolls : 55-57 Hrc
- Movement of Rolls : Mechanical Screw
- Bearings : Branded & Quality approved make
DE-COILER WITH HYDRAULIC EXPANSION

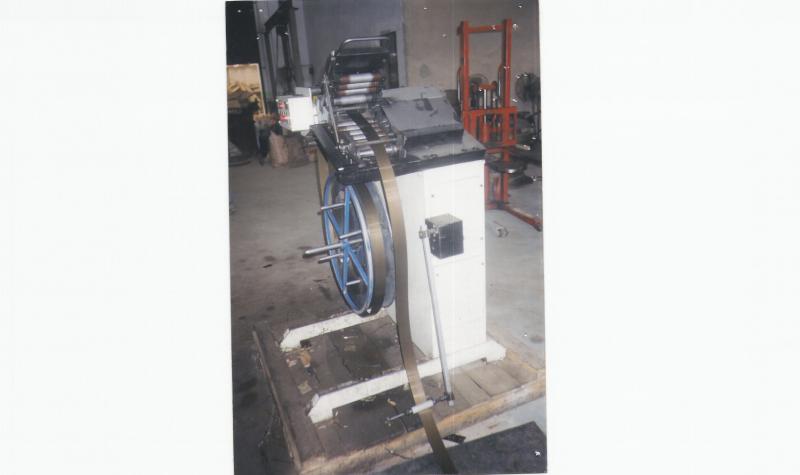

DE-COILER CUM STRAIGHTENER- COMPACT
TYPE
Welcome to Hertz Controls (India) Private Limited
Manufacturer and exporter of Pneumatic Feeder,Air Feeder,Mechanical Gripper Feeder,NC Servo Feeder,Strip Straightener/Leveler,De-coiler,Component Straightener,NC 3-1 Series,De-Coiler cum Straightener,Material Handling Equipment,Cut to Length Lines.
VISIT AT: www.ctlline.com
FOR MORE DETAILS

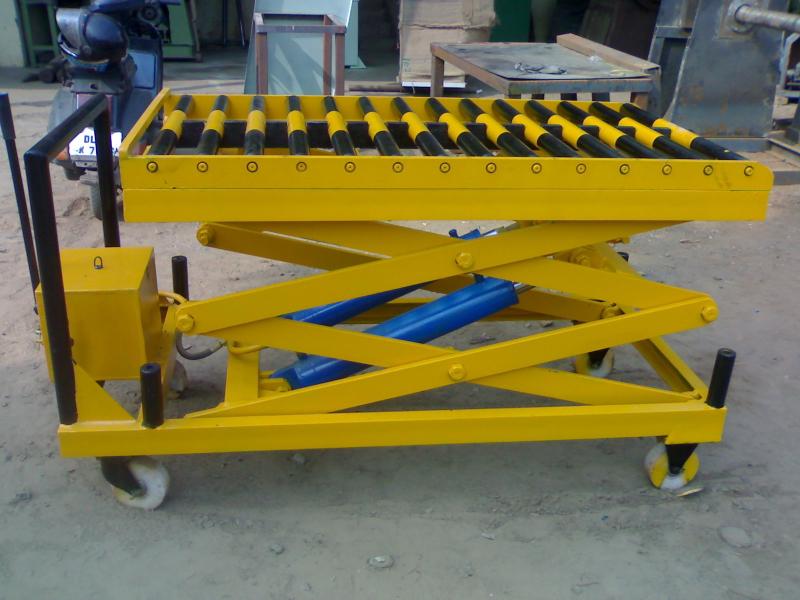

HYDRAULIC LIFTING TABLES
Our hydraulic lifting tables which are long lasting and deliver trouble free performance. Offering qualitative performance with no maintenance, these are perfect for various industrial applications. These tables are operated by a manual hand pump make Dowty or by hydraulic power . Our tables include :
- The plate form sizes widthvaries 600- 2000 mm & length 900- 6000mm)mm
- Double hydraulic cylinders provide higher lifting power
